Condenser Wire Mesh Welding Machine , Bundy Tube Bending Machine
DESCRIPTION
We can supply the condenser production line machines:Wire Straightening and Cutting Machine,
Bundy Tube Straightening and Cutting Machine,Bundy Tube Bending Machine ,Condenser Welding Machine,Tube End Expanding Machine

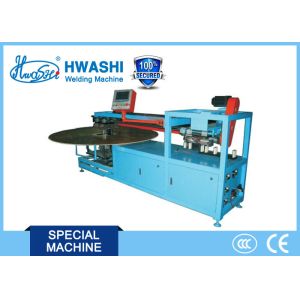

Bundy Tube Bending Machine
Be able to customize according to customer requirement. Be applied to ultrathin copper tube, aluminium tube, bundy tube, D-shaped tube, etc.
TECHNICAL PARAMETERS
| Applicable Tube | bundy tube, copper tube, aluminium tube |
| Power Voltage | 220V |
| Working Air Pressure | 0.5-0.6Mpa |
| Bending Position | 4-12 |
| Bending Angle | 1-180° |
| Bending Radius Range | R15-R35 |
| Tube Diameter Range | ￠3~￠12mm |
| Number of Single Bending Times | 110 |
| Single Feeding | 0-700mm/time, be able to feed 3 times |
| Operation Mode | Touch Screen, Button Switch |
| Running Mode | Servo feeding, bending |
| Rotary table diameter | 2m |
| Rotary table running | Servo control |
MATERIAL CONFIGURATION
| No. | Items | Brand | Country of Origin |
| 1 | Sevo Motor | Delta | Taiwan |
| 2 | Penumatic Parts | Tiangong | China |
| 3 | PLC | Hechuan | China |
| 4 | Touch Screen | Xinjie | China |
| 5 | Ball Screw, Guide Rail | TBI | Taiwan |
| 6 | Contactor, switch, button | Schneider | France |
APPLICATION
Applicable to produce wire tube condenser, wire mesh,etc.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
